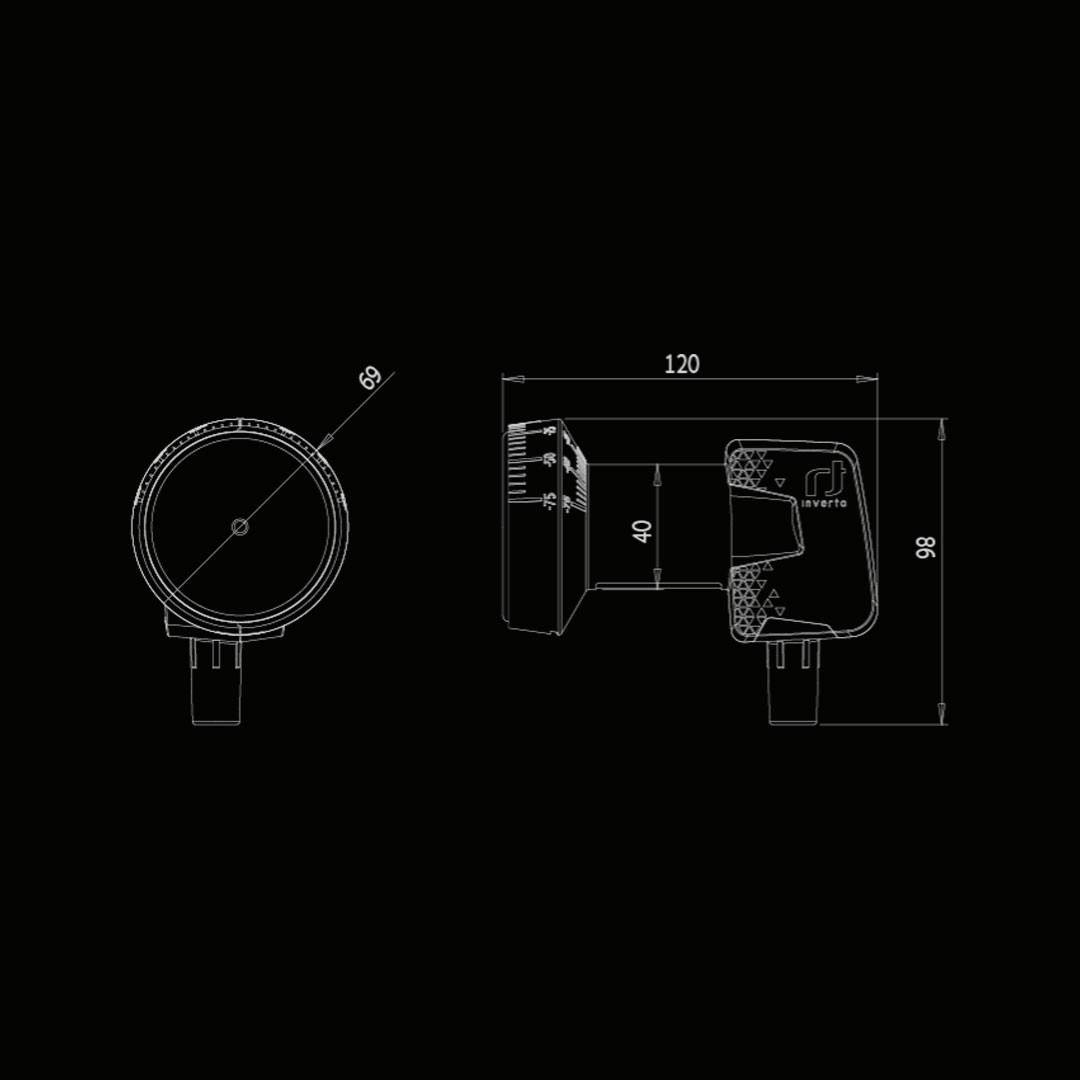

rt-Inverto HOME Pro -Single Universal LNB 40mm PLL

(0 reviews)
Brand
rt Invento

Inhouse product


Price
د.ك1.990 /Pc
Quantity
(10 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
Main Features:
  • Low Phase Noise, DVB-S2 (HD and UHD) compliant
  • Low Noise Figure
  • Low power consumption
  • High Cross Polarization Isolation
  • High Frequency stability
Technical specifications
Input frequency range10.7 GHz ~ 12.75 GHz
Output frequency range
950 MHz ~ 1950 MHz
Low band LO frequency
9.75 GHz
High band LO frequency
10.6 GHz
Noise figure
0.7 dB typ. (1 dB max.)
LO frequency accuracy @ 25° C
±400 kHz max.
LO temperature drift±800 kHz max.
LO phase noise @ 10 kHz
-90 dBc/Hz max.
Conversion gain
55 dB min.
Gain ripple (over 26 MHz bandwidth)±0.6 dB
Gain variation (over full band)±4 dB
Image rejection
40 dB min.
3th order intermodulation - ICP310 dBm typ.
1 dB compression point (@ output)0 dBm min.
Cross polarization isolation22 dB min.
Control signal Ca (V)
10.0 V ~ 14.0 V
Control signal Cb (H)
16.0 V ~ 20.0 V
Control signal Cc (band switching)
22 kHz ±4 kHz
Output VSWR
2.3 : 1
In band spurious level-60 dBm max.
Current consumption
210 mA max. @ 11 VDC ~ 20 VDC
Operating temperature
-30 °C ~ +60 °C
Output impedance (LNB2)
75 Ω
Output connector type
F-type (female)
Dish F/D ratio0.6
Weight299 g
